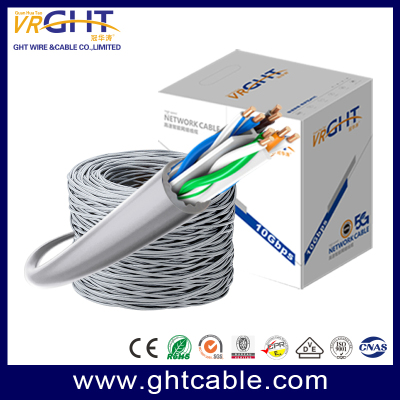

Indoor 23AWG U/UTP Cat6a 10G Cable
| Specification | |
| Model Name | Indoor Cat6a Cable U/UTP |
| Place of Origin | Guangdong, China |
| Number of Conductors | 8 |
| Certification | CPR CE |
| Braiding Density | N/A |
| Type | Cat6a |
| Brand Name | VRGHT |
| Shielding | Unshielding |
| Jacket Material | PVC |
| Foil Material | N/A |
| Working Capacitance(Max.) | 5.4Nf/100M |
| Insulation Resistance | 10000 MOhm.km |
| Transmission Velocity | 0.65 |
| Operating Temperation | -20 °C - +60 °C |
| PVC Jacket Color | As Client's Request. |
| Marking On Jacket | On your request (Print your brand) |
Model: UTP CAT6A Cable
Indoor unshielded CAT6a Ethernet cables meet the 10 Gigabit Ethernet (1000BASE-T) standard,
A bandwidth of up to 500 MHz can be achieved,
This cable complies with the requirements of TIA/EIA-568.C.2 and ISO/IEC 11801.
characteristic:
Compliant with Cat6a specifications
4 pairs of unshielded twisted pair cables
23 AWG copper conductor
Standard Specifications：
Category: CAT6A Solid cable
Conductor: 23AWG conductor 99.9% bare copper
Insulation: HD-PE
Insulation Thickness:0.3mm±0.02mm
Insulation diameter1.02mm±0.02mm
Sheath: PVC
Cable Diameter: 6.5mm±0.2mm
Color：Grey/Blue/ customized
Printing: Each meter printed with sequential length counter
